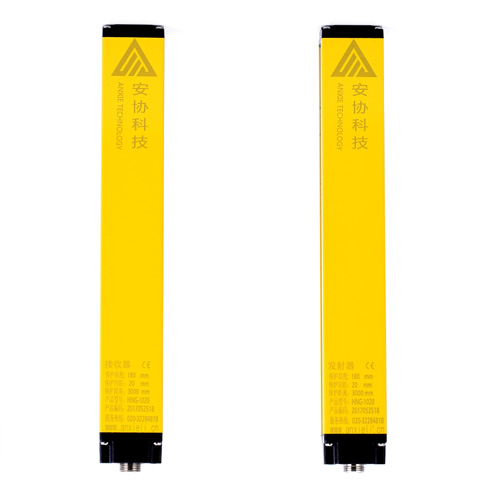

- HNG系列安全光柵
HNG自動化安全光柵Automatic safety grating
產品介紹Product introduction：
1.外形小巧，尺寸僅35*35mm
2.安裝方式靈活、簡便
3.光點循環自檢，提升設備安全性。
4.具有防水功能。
5.進口老化設備保護產品的質量安全穩定
6.可提供PNP輸出，此時應保證后續控制電路符合安全要求，并提供DC24V電源
7.標準配置：發光器/1支，受光器/1支，信號電纜 1.5m,3.5m各一根；
1. The appearance is small, only 35 * 35 mm
2. A flexible and easy installation
3. Light circular self-checking, improve equipment safety.
4. Have waterproof function.
5. Imported aging equipment to protect the security and stability of the quality of the product
6. Can provide PNP output, should guarantee the follow-up control circuit meet safety requirements, and provide DC24V power supply
7. The standard configuration: light emitting device / 1 teams, by light / 1, P type controller / 1, the only signal cable series 1.5 m, 3.5 m ea
產品技術參數Product technical parameters：
保護高度 | 60~2000mm（常規） | 工作環境溫度 | -10℃~55℃ |
光軸間距 | 5mm/10mm/20mm/40mm | 截面尺寸 | 35*35mm |
光軸數量 | 4、6、8、10…… | 工作環境濕度 | 溫度20℃時，空氣相對濕度<85% |
工作電壓 | DC10V~30V | 輸出電流 | ≤300mA |
功率 | <5W | 光幕形式 | 對射式 |
響應時間 | <10ms | 抗光干擾 | 10000Lux(入射角I>5°） |
絕緣電阻 | ≥100MΩ | 介電強度 | ACI500V.60S.無擊穿或閃爍 |
輸出方式 | NPN或PNP（常規）/繼電器常開/繼電器常閉 （可根據需求選擇） | ||

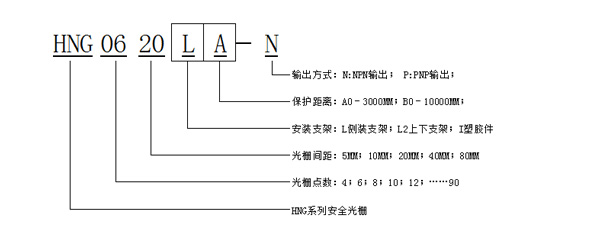

HNG系列產品選型規格說明：
HNG列產品選型表(單位數為mm) HNG series product selection table (unit mm)
光軸間距（5mm) | 光軸間距（10mm) | |||||||
光束數量 | 保護高度 | 外殼高度 | 規格型號 | 光束數量 | 保護高度 | 外殼高度 | 規格型號 | |
16 | 75 | 152.5 | HNG 1605 | 8 | 70 | 140 | HNG 0810 | |
24 | 115 | 192.5 | HNG 2405 | 12 | 110 | 180 | HNG 1210 | |
32 | 155 | 232.5 | HNG 3205 | 16 | 150 | 220 | HNG 1610 | |
40 | 195 | 272.5 | HNG 4005 | 20 | 190 | 260 | HNG 2010 | |
48 | 235 | 312.5 | HNG 4805 | 24 | 230 | 300 | HNG 2410 | |
56 | 275 | 352.5 | HNG 5605 | 28 | 270 | 340 | HNG 2810 | |
64 | 315 | 392.5 | HNG 6405 | 32 | 310 | 380 | HNG 3210 | |
72 | 355 | 432.5 | HNG 7205 | 36 | 350 | 420 | HNG 3610 | |
80 | 395 | 472.5 | HNG 8005 | 40 | 390 | 460 | HNG 4010 | |
88 | 435 | 512.5 | HNG 8805 | 44 | 430 | 500 | HNG 4410 | |
96 | 475 | 552.5 | HNG 9605 | 48 | 470 | 540 | HNG 4810 | |
104 | 515 | 592.5 | HNG 10405 | 52 | 510 | 580 | HNG 5210 | |
112 | 555 | 632.5 | HNG 11205 | 56 | 550 | 620 | HNG 5610 | |
120 | 595 | 672.5 | HNG 12005 | 60 | 590 | 660 | HNG 6010 | |
128 | 635 | 712.5 | HNG 12805 | 64 | 630 | 700 | HNG 6410 | |
光軸間距（20mm) | 光軸間距（40mm) | |||||||
光束數量 | 保護高度 | 外殼高度 | 規格型號 | 光束數量 | 保護高度 | 外殼高度 | 規格型號 | |
4 | 60 | 140 | HNG 0420 | 4 | 120 | 200 | HNG 0440 | |
6 | 100 | 180 | HNG 0620 | 6 | 200 | 280 | HNG 0640 | |
8 | 140 | 220 | HNG 0820 | 8 | 280 | 360 | HNG 0840 | |
10 | 180 | 260 | HNG 1020 | 10 | 360 | 440 | HNG 1040 | |
12 | 220 | 300 | HNG 1220 | 12 | 440 | 520 | HNG 1240 | |
14 | 260 | 340 | HNG 1420 | 14 | 520 | 600 | HNG 1440 | |
16 | 300 | 380 | HNG 1620 | 16 | 600 | 680 | HNG 1640 | |
18 | 340 | 420 | HNG 1820 | 18 | 680 | 760 | HNG 1840 | |
20 | 380 | 460 | HNG 2020 | 20 | 760 | 840 | HNG 2040 | |
22 | 420 | 500 | HNG 2220 | 22 | 840 | 920 | HNG 2240 | |
24 | 460 | 540 | HNG 2420 | 24 | 920 | 1000 | HNG 2440 | |
26 | 500 | 580 | HNG 2620 | 26 | 1000 | 1080 | HNG 2640 | |
28 | 540 | 620 | HNG 2820 | 28 | 1080 | 1160 | HNG 2840 | |
30 | 580 | 660 | HNG 3020 | 30 | 1160 | 1240 | HNG 3040 | |
32 | 620 | 700 | HNG 3220 | 32 | 1240 | 1320 | HNG 3240 | |
HNG產品附件配置Attachment product configuration:
支架名稱代碼 | 支架及配件圖片 | 明細 |

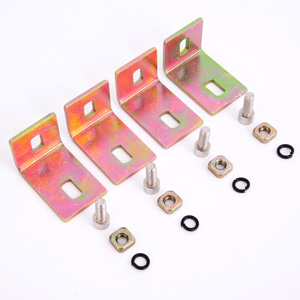

側裝支架 （L1) |
| 4個側裝支架+4個滑塊+4個M6墊圈+4個M6彈墊+4顆M6*16螺絲+4顆M6*8螺絲 |

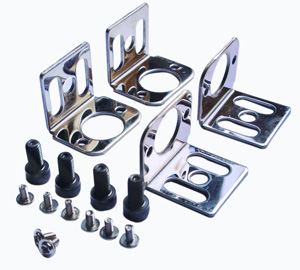

上下端安裝支架 （L2) |
| 4個上下端支架+4顆M6*12螺絲+8顆M6*8螺絲 |
注Note：
1.可根據客戶需求選配(包括線加長、更換安裝方式等）
2.電源電壓24VDC/220VAC可定制
1. According to customer demand matching (including line extension, replacement, installation, etc.)
2. The power supply voltage 24 VDC / 220 vac can be customized

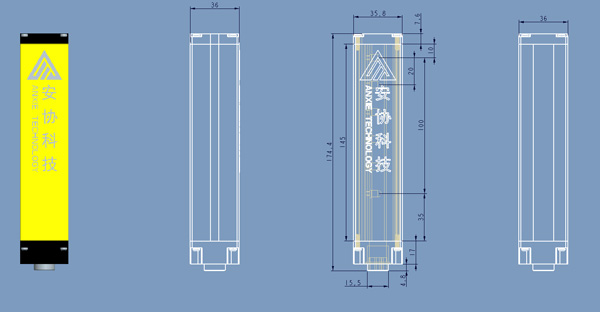

HNG尺寸圖
